 Volume 12, Issue 5 (May 2025), Pages: 109-119

----------------------------------------------

 Original Research Paper

Multilayer graphene-based rectenna for RF energy harvesting at the 2.4 GHz band

 Author(s):

 Dennis Yang Shen Cheah 1, Chia Chao Kang 2, *, Chuan Yi Foo 1, Chia Pao Liew 1, Jian Ding Tan 2, Mohammad Mahdi Ariannejad 2

 Affiliation(s):

  1School of Energy and Chemical Engineering, Xiamen University Malaysia, Sepang, Malaysia
  2School of Artificial Intelligence and Robotics, Xiamen University Malaysia, Sepang, Malaysia

 Full text

    Full Text - PDF

 * Corresponding Author.

   Corresponding author's ORCID profile:  https://orcid.org/0000-0002-8716-3739

 Digital Object Identifier (DOI)

  https://doi.org/10.21833/ijaas.2025.05.011

 Abstract

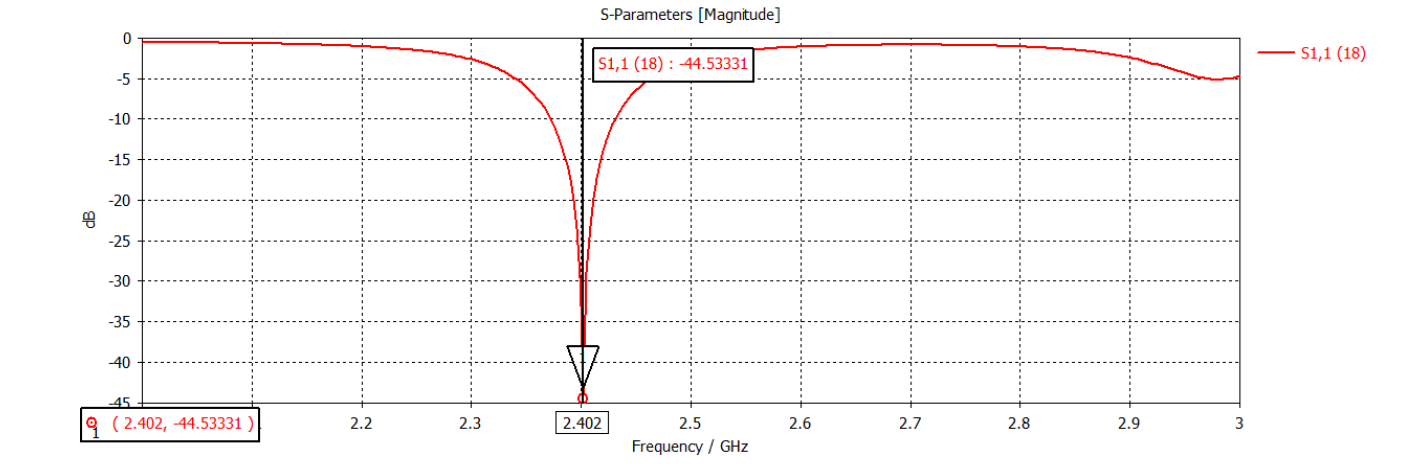

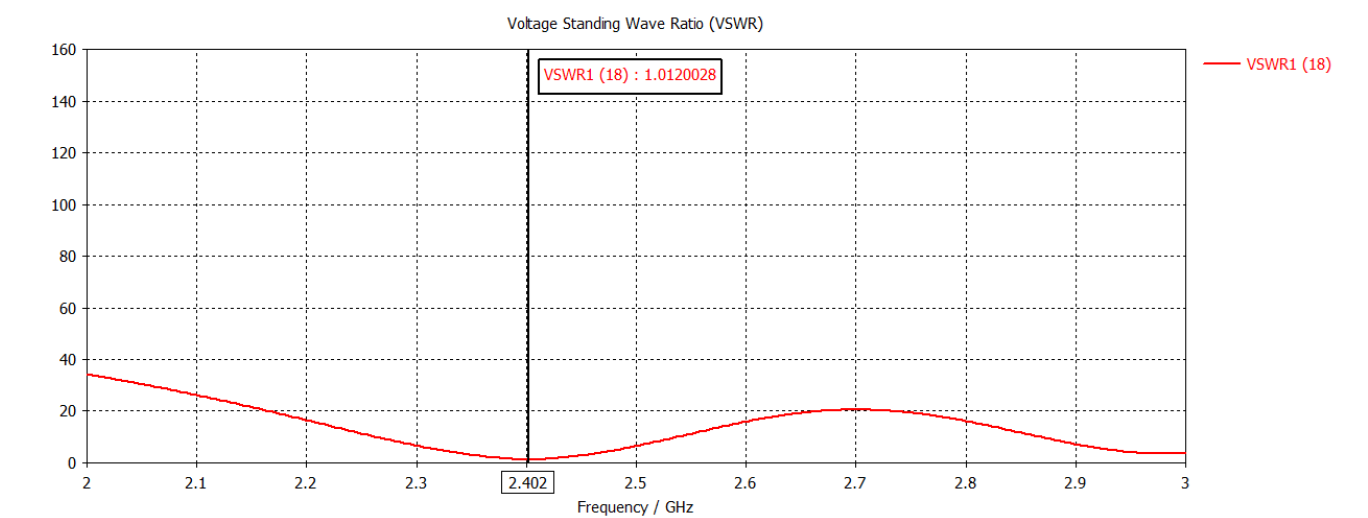

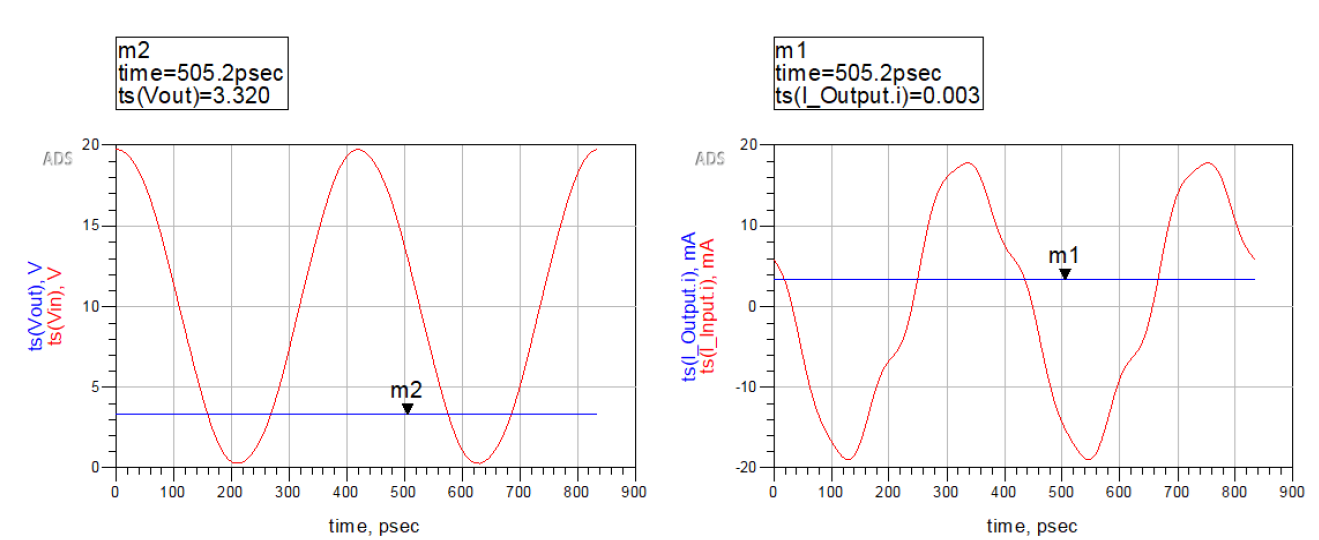

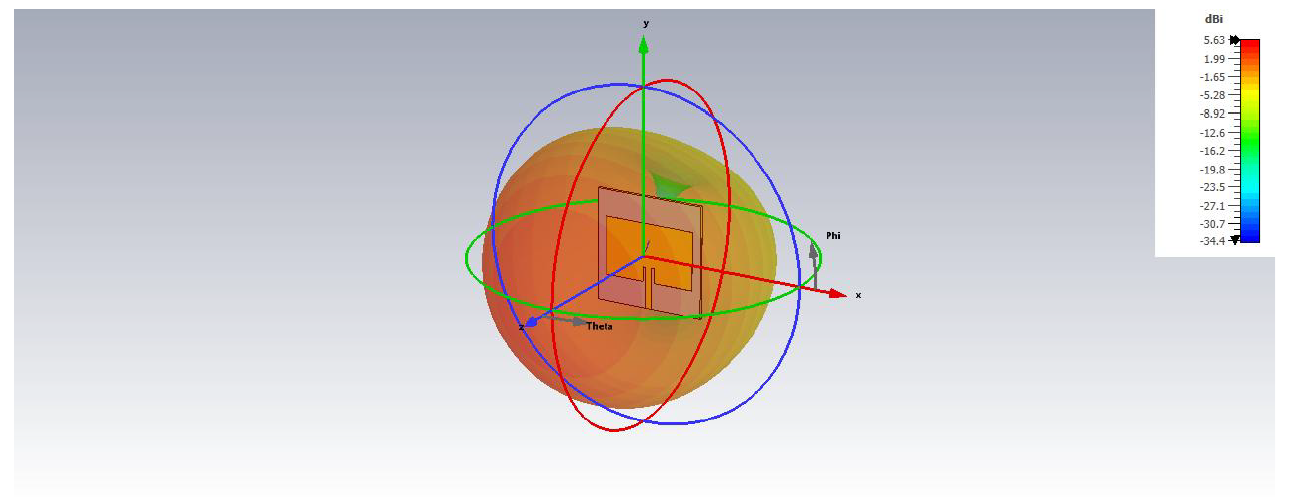

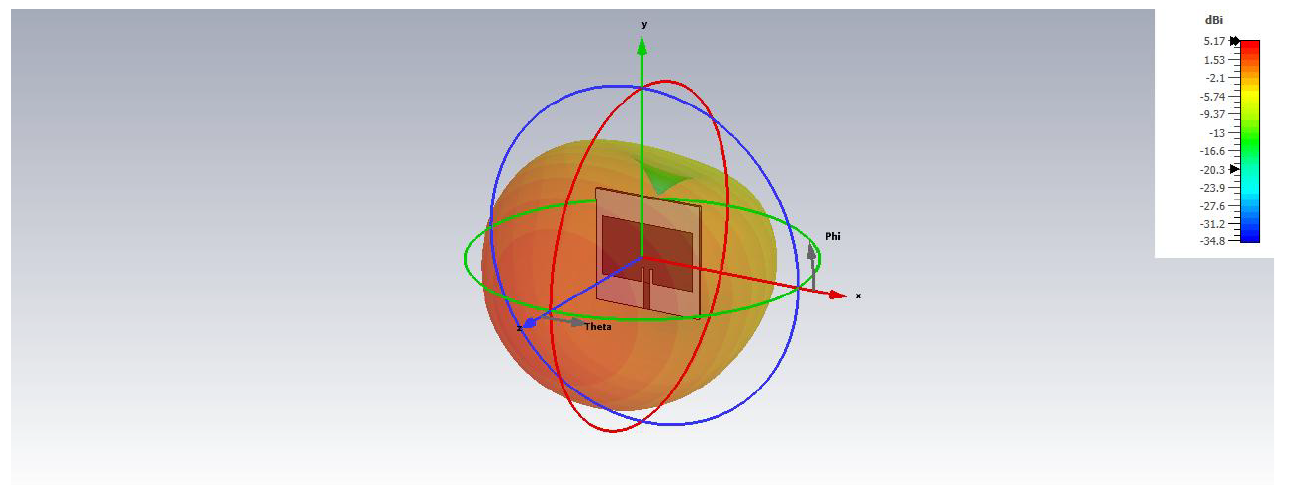

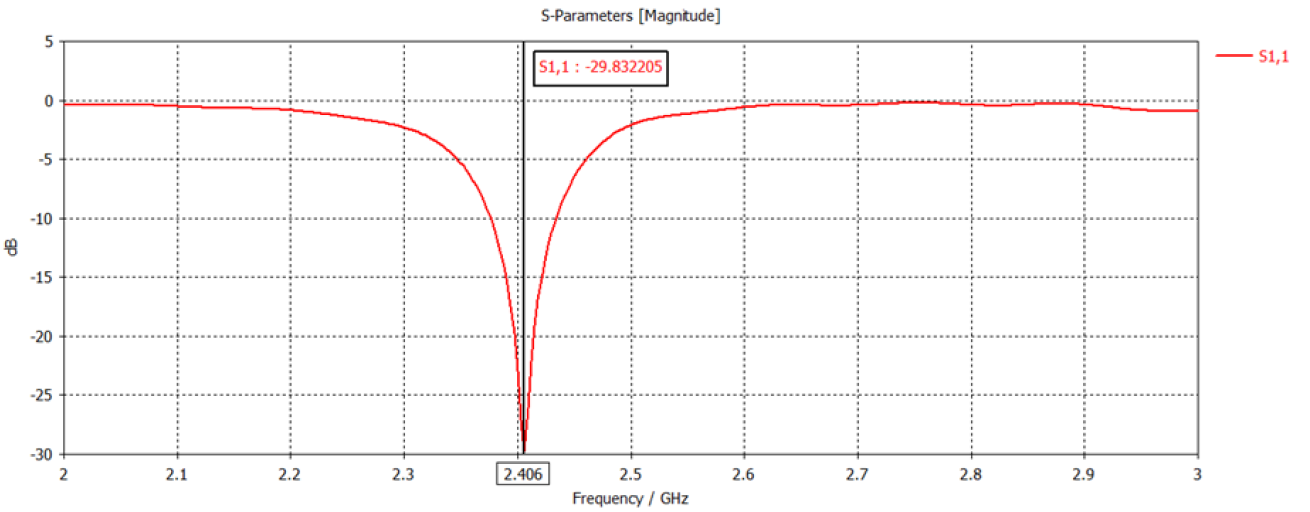

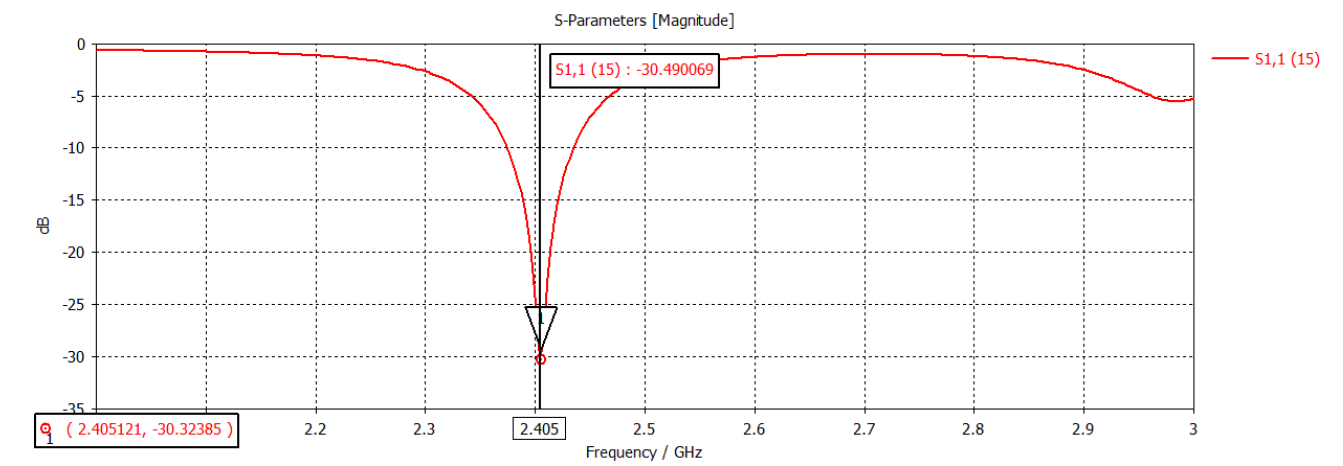

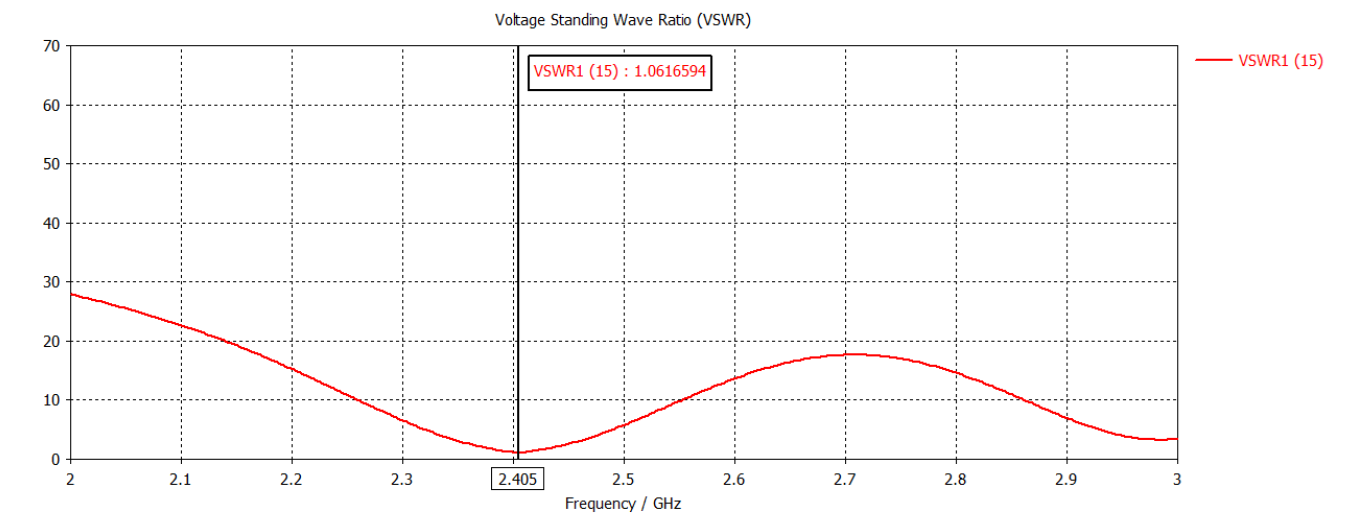

This research examines the efficiency of copper, single-layer graphene, and multilayer graphene rectennas for radio frequency (RF) energy harvesting at a resonant frequency of 2.4 GHz. Using advanced simulation software, key antenna parameters such as return loss (S11), Voltage Standing Wave Ratio (VSWR), gain, and output voltage were analyzed to evaluate the performance of the designed antennas in capturing and converting RF energy. The results show that the multilayer graphene antenna provides the best performance, with a return loss of -44.53 dB and a VSWR of about 1.01, indicating excellent impedance matching and minimal power reflection. Although the copper antenna achieved the highest gain of 5.63 dB, the multilayer graphene antenna showed a similar gain of 5.47 dB, with only a small difference in effective radiated power. In addition, the multilayer graphene antenna produced the highest output voltage among the three types, highlighting its potential for RF energy harvesting. These findings suggest that multilayer graphene can improve the energy harvesting performance of rectennas by enhancing impedance matching and maximizing voltage output. Therefore, multilayer graphene appears to be a promising alternative to traditional copper materials for RF energy harvesting applications, especially for powering low-energy devices such as wireless sensors and Internet of Things (IoT) technologies.

 © 2025 The Authors. Published by IASE.

 This is an open access article under the CC BY-NC-ND license ( http://creativecommons.org/licenses/by-nc-nd/4.0/).

 Keywords

 RF energy harvesting, Multilayer graphene, Rectenna efficiency, Impedance matching, Output voltage

 Article history

 Received 22 December 2024, Received in revised form 27 April 2025, Accepted 1 May 2025

 Acknowledgment

The authors gratefully acknowledge financial support by Xiamen University Malaysia under Research Fund Grant No: XMUMRF/2025-C15/IECE/0059 and XMUMRF/2023-C12/IECE/0047.

  Compliance with ethical standards

  Conflict of interest: The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

 Citation:

 Cheah DYS, Kang CC, Foo CY, Liew CP, Tan JD, and Ariannejad MM (2025). Multilayer graphene-based rectenna for RF energy harvesting at the 2.4 GHz band. International Journal of Advanced and Applied Sciences, 12(5): 109-119

  Permanent Link to this page

 Figures

  Fig. 1  Fig. 2  Fig. 3  Fig. 4  Fig. 5  Fig. 6  Fig. 7  Fig. 8  Fig. 9  Fig. 10  Fig. 11  Fig. 12  Fig. 13  Fig. 14  Fig. 15  Fig. 16

 Tables

  Table 1  Table 2

----------------------------------------------

 References (25)
