Volume 9, Issue 10 (October 2022), Pages: 101-105

----------------------------------------------

 Technical Note

 Application of models for directional drilling technology

 Author(s): O. J. Oloro ^1, *, G. I. Efenedo ², F. E. Ukrakpor ³

 Affiliation(s):

 ¹Petroleum Engineering Department, Delta State University, Abraka, Nigeria
 ²Electrical/Electronic Engineering Department, Delta State University, Abraka, Nigeria
 ³Mechanical Engineering Department, Delta State University, Abraka, Nigeria

  Full Text - PDF          XML

 * Corresponding Author.

  Corresponding author's ORCID profile: https://orcid.org/0000-0002-6164-071X

 Digital Object Identifier:

 https://doi.org/10.21833/ijaas.2022.10.013

 Abstract:

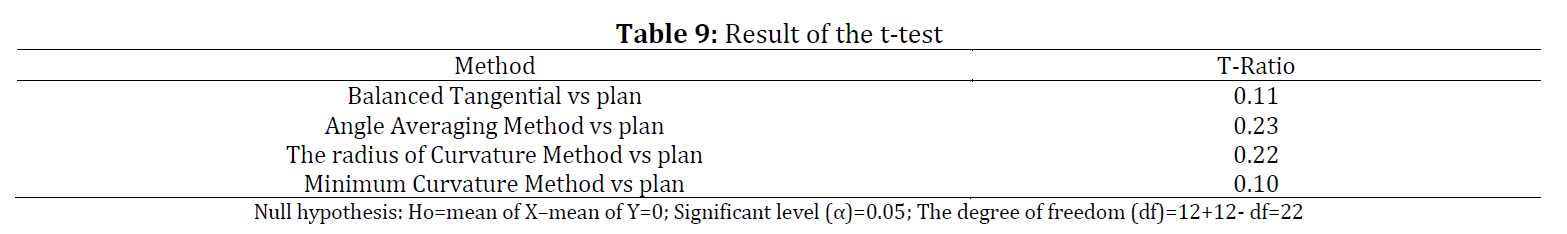

The aim of this study is to develop a program to compare directional survey models and select the most accurate. When drilling a directional well, the actual route of the well must be regularly checked to ensure that it is in agreement with the planned route. This is done by measuring the position of the well at constant intervals. A program was established to be used for the five methods (Minimum Curvature, Tangential, Angle Averaging, Balanced Tangential, and Radius of Curvature) for well path design. The directional survey extents are assumed in terms of inclination, azimuth, and 3D coordinates. Comparing the result from the program developed which was used for the different methods it was observed that this new method is faster and more reliable. T-Test statistical method to compare the values gotten for the vertical section from the plan with that of the actual survey was used. The results obtained using the average angle, minimum curvature, balanced tangential, and radius of curvature are very small hence any of the methods can be used for calculating the well trajectory but the Tangential shows considerable error and is highly strayed from the plan in the build section hence it should not be used in directional survey calculation. The conclusion drawn from the t-test carried out, therefore, is that there is no significant difference in the vertical section values between the plan and the fives methods considered.

 © 2022 The Authors. Published by IASE.

 This is an open access article under the CC BY-NC-ND license (http://creativecommons.org/licenses/by-nc-nd/4.0/).

 Keywords: Different models, Directional survey calculation, Vertical well, Magnetic declination

 Article History: Received 23 March 2022, Received in revised form 16 June 2022, Accepted 1 July 2022

 Acknowledgment

No Acknowledgment.

 Compliance with ethical standards

 Conflict of interest: The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

 Citation:

 Oloro OJ, Efenedo GI, and Ukrakpor FE (2022). Application of models for directional drilling technology. International Journal of Advanced and Applied Sciences, 9(10): 101-105

 Permanent Link to this page

 Figures

 No Figure

 Tables

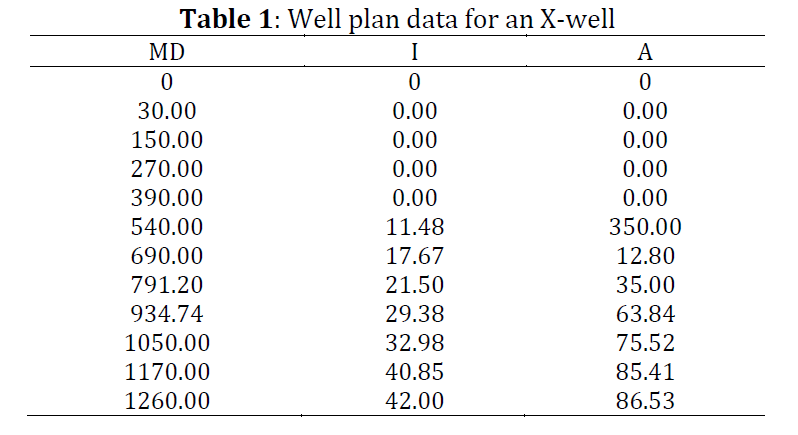

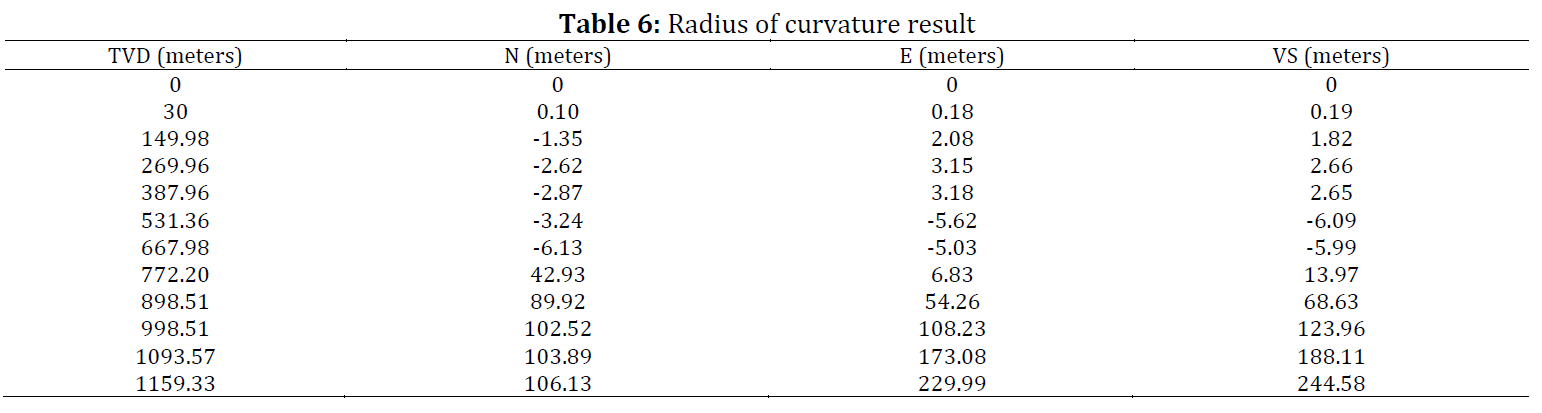

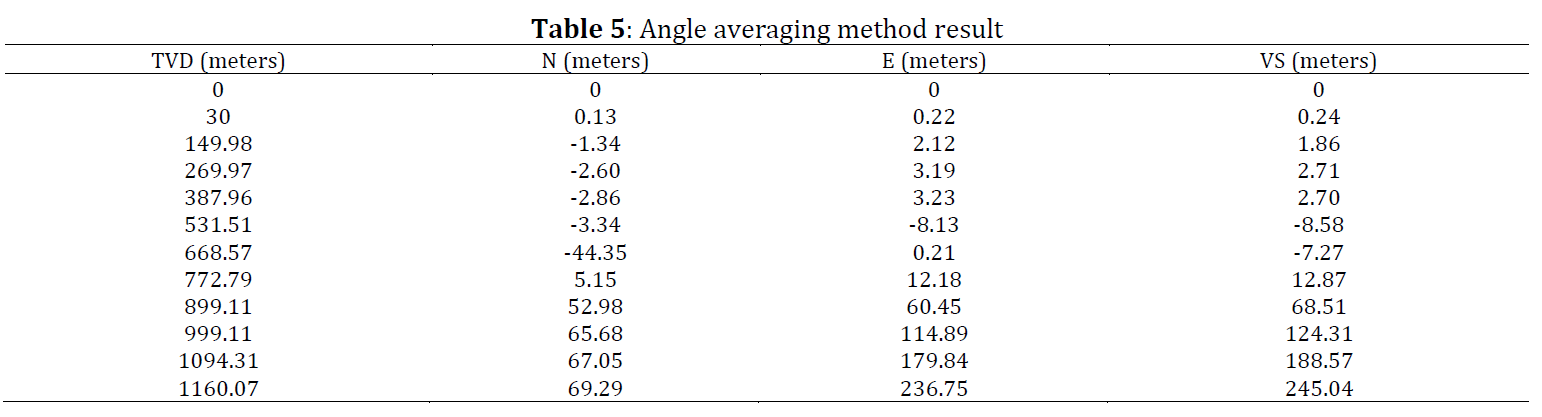

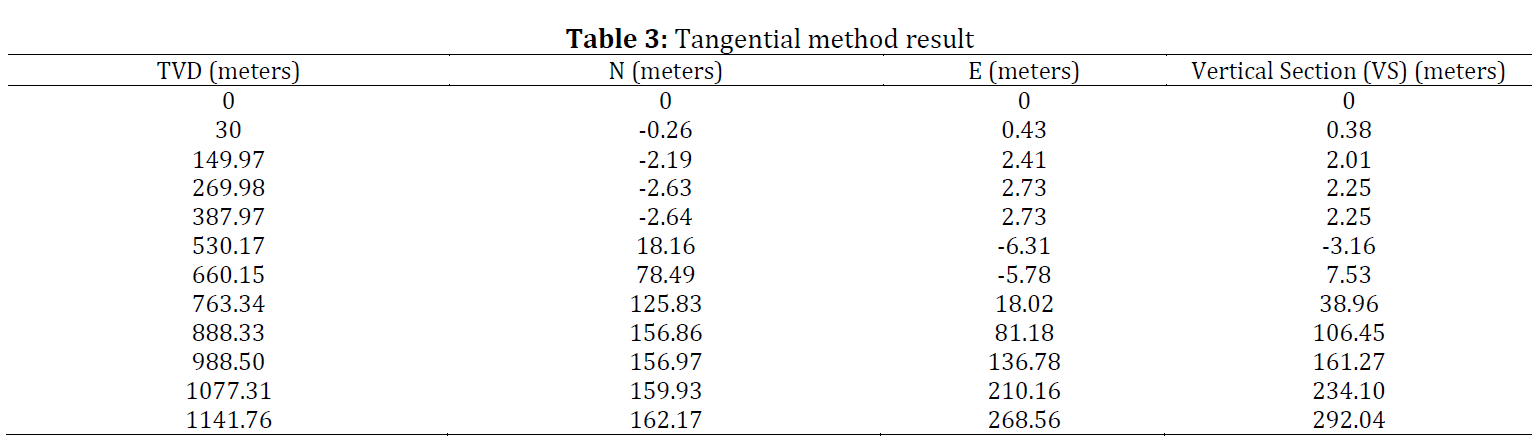

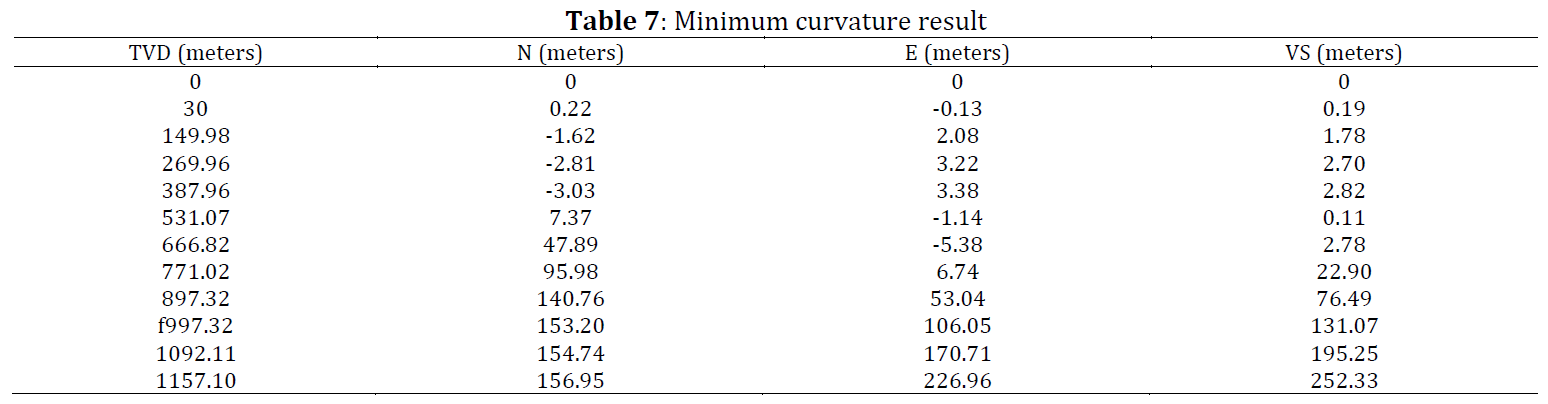

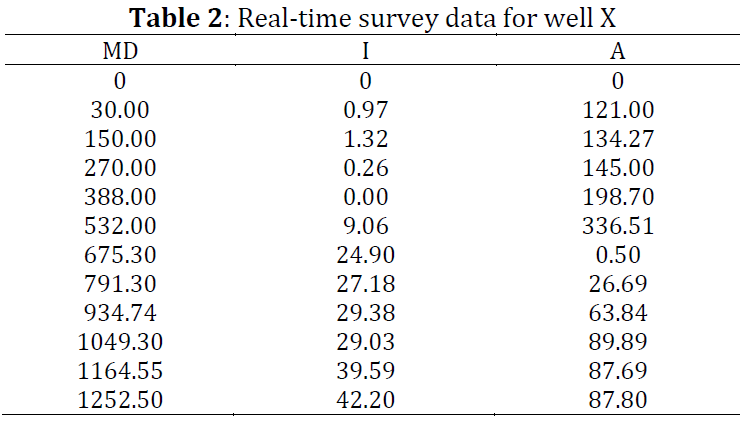

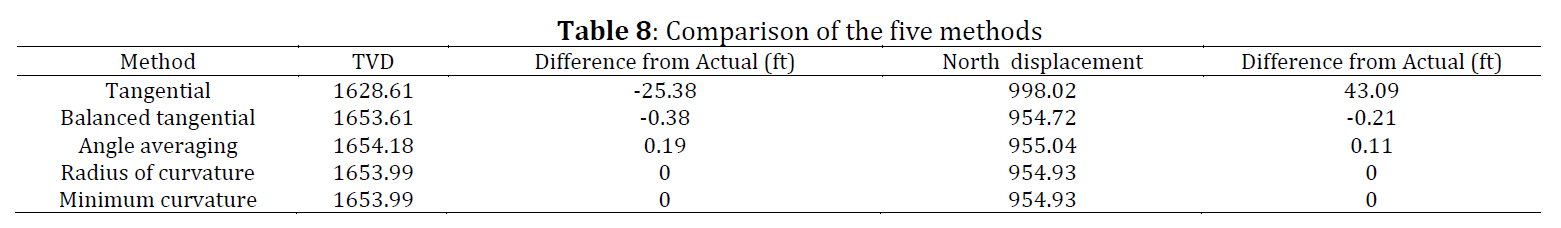

 Table 1 Table 2 Table 3 Table 4 Table 5 Table 6 Table 7 Table 8 Table 9

----------------------------------------------

 References (9)

1. Abughaban MF, Eustes AW, de Wardt JP, and Willerth M (2017). Improving torque and drag prediction using the advanced spline curves borehole trajectory. In the SPE/IADC Drilling Conference and Exhibition, OnePetro, Hague, Netherlands: SPE-184611-MS. https://doi.org/10.2118/184611-MS   [Google Scholar]
2. Atashnezhad A, Wood DA, Fereidounpour A, and Khosravanian R (2014). Designing and optimizing deviated wellbore trajectories using novel particle swarm algorithms. Journal of Natural Gas Science and Engineering, 21: 1184-1204. https://doi.org/10.1016/j.jngse.2014.05.029   [Google Scholar]
3. Eren T and Suicmez VS (2020). Directional drilling positioning calculations. Journal of Natural Gas Science and Engineering, 73: 103081. https://doi.org/10.1016/j.jngse.2019.103081   [Google Scholar]
4. Guria C, Goli KK, and Pathak AK (2014). Multi-objective optimization of oil well drilling using elitist non-dominated sorting genetic algorithm. Petroleum Science, 11(1): 97-110.‏ https://doi.org/10.1007/s12182-014-0321-x   [Google Scholar]
5. Khaled SM (2016). A new model for calculating well trajectory. International Advanced Research Journal in Science, Engineering and Technology, 3(11): 108-111. https://doi.org/10.17148/IARJSET.2016.31121   [Google Scholar]
6. Ma T, Chen P, and Zhao J (2016). Overview on vertical and directional drilling technologies for the exploration and exploitation of deep petroleum resources. Geomechanics and Geophysics for Geo-Energy and Geo-Resources, 2(4): 365-395. https://doi.org/10.1007/s40948-016-0038-y   [Google Scholar]
7. Sawaryn SJ, Lowdon R, and Thorogood JL (2021). Some technical and economic consequences of directional drilling and surveying progress and success. In the SPE/IADC International Drilling Conference and Exhibition. OnePetro: SPE-204027-MS. https://doi.org/10.2118/204027-MS   [Google Scholar]
8. Schumacher FP and Kim E (2014). Evaluation of directional drilling implication of double layered pipe umbrella system for the coal mine roof support with composite material and beam element methods using FLAC 3D. Journal of Mining Science, 50(2): 335-348. https://doi.org/10.1134/S1062739114020173   [Google Scholar]
9. Xiushan LIU (2018). Quantitative recognition method for borehole trajectory models. Petroleum Exploration and Development, 45(1): 154-158. https://doi.org/10.1016/S1876-3804(18)30015-6   [Google Scholar]
