Volume 8, Issue 12 (December 2021), Pages: 43-47
Title: The implementation and evaluation of the field of view in 3D PC game
Author(s): Zhi-Qi Liang, Min-Bin Chen *, Cheng-Xuan Wu, Yin-Qing Li, Song-Hua Lin
Department of Digital Multimedia Design, China University of Technology, Taipei, Taiwan
Full Text - PDF XML
* Corresponding Author.
Corresponding author's ORCID profile: https://orcid.org/0000-0002-1701-4316
Digital Object Identifier:
This research developed a 3D third-person game, made open and closed scenes, through experiments to investigate the field of view suitable for different scenes. Playing 3D games can sometimes cause 3D discomfort or motion sickness. There are many people who have this kind of 3D discomfort. In the research on this issue, the authenticity of the game or the physiological impact of the observer was discussed in detail; however, the impact of the design of the game itself was less discussed. The field of view in the game scene is likely to cause motion sickness. This experimental method uses the adjustment method in psychophysics to test whether the player is comfortable with different scenes. According to the test of different scenarios, the average and standard deviation of the most comfortable visual field are obtained. The viewing angles of different scenes are significantly different, and the best viewing angle of a closed scene is larger than that of an open scene.
© 2021 The Authors. Published by IASE.
This is an open access article under the CC BY-NC-ND license (http://creativecommons.org/licenses/by-nc-nd/4.0/).
Keywords: Motion sickness, 3D discomfort, Field of view, Viewing angle
Article History: Received 8 July 2021, Received in revised form 27 September 2021, Accepted 28 September 2021
Compliance with ethical standards
Conflict of interest: The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.
Liang ZQ, Chen MB, and Wu CX et al. (2021). The implementation and evaluation of the field of view in 3D PC game. International Journal of Advanced and Applied Sciences, 8(12): 43-47
Permanent Link to this page

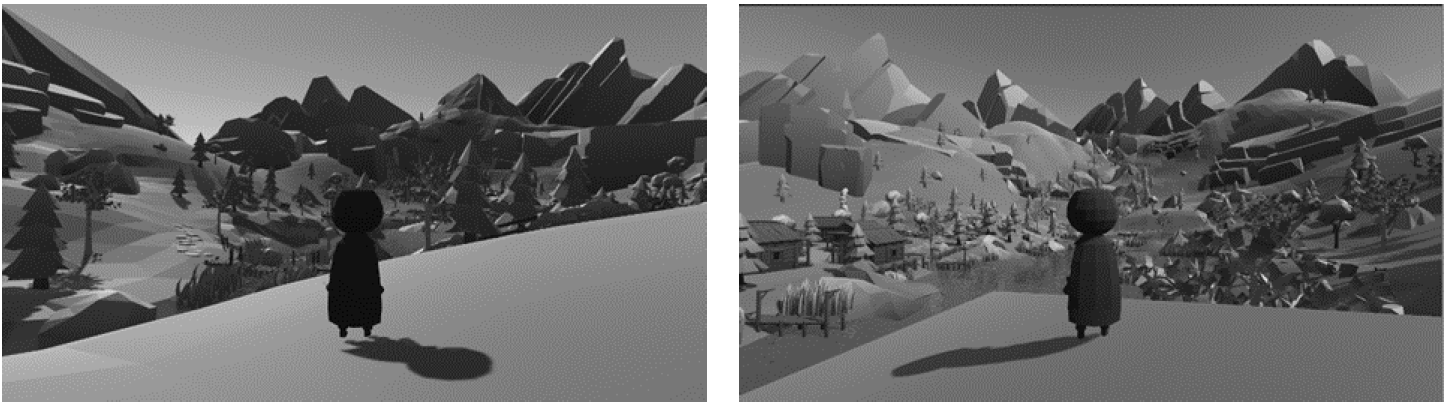

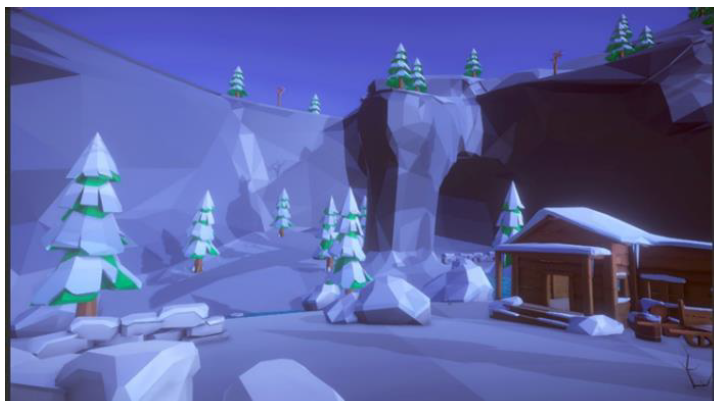

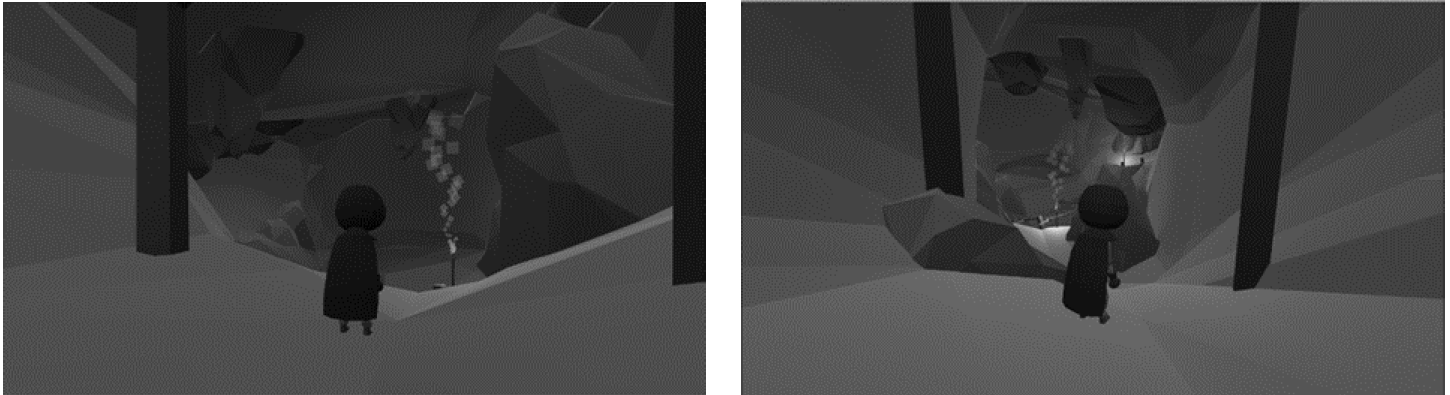

Fig. 1 Fig. 2 Fig. 3
- Becerra I, Suomalainen M, Lozano E, Mimnaugh KJ, Murrieta-Cid R, and LaValle SM (2020). Human perception-optimized planning for comfortable VR-based telepresence. IEEE Robotics and Automation Letters, 5(4): 6489-6496. https://doi.org/10.1109/LRA.2020.3015191 [Google Scholar]
- Bos JE, de Vries SC, van Emmerik ML, and Groen EL (2010). The effect of internal and external fields of view on visually induced motion sickness. Applied Ergonomics, 41(4): 516-521. https://doi.org/10.1016/j.apergo.2009.11.007 [Google Scholar] PMid:20042182
- Chang CH, Pan WW, Tseng LY, and Stoffregen TA (2012). Postural activity and motion sickness during video game play in children and adults. Experimental Brain Research, 217(2): 299-309. https://doi.org/10.1007/s00221-011-2993-4 [Google Scholar] PMid:22210118
- Chen YJ (2010). Investigation of physiological responses related to VR-induced motion-sickness. Ph.D. Dissertation, National Chiao Tung University, Hsinchu, Taiwan.
- Cunningham DW and Wallraven C (2019). Experimental design: From user studies to psychophysics. AK Peters/CRC Press, Natick, USA. [Google Scholar]
- Draper MH, Viirre ES, Furness TA, and Gawron VJ (2001). Effects of image scale and system time delay on simulator sickness within head-coupled virtual environments. Human Factors, 43(1): 129-146. https://doi.org/10.1518/001872001775992552 [Google Scholar] PMid:11474759
- Farmani Y and Teather RJ (2020). Evaluating discrete viewpoint control to reduce cybersickness in virtual reality. Virtual Reality, 24(4): 645–664. https://doi.org/10.1007/s10055-020-00425-x [Google Scholar]
- Ishak S, Bubka A, and Bonato F (2018). Visual occlusion decreases motion sickness in a flight simulator. Perception, 47(5): 521-530. https://doi.org/10.1177/0301006618761336 [Google Scholar] PMid:29490570
- Kim J and Park T (2020). The onset threshold of cyber sickness in constant and accelerating optical flow. Applied Sciences, 10(21): 7808. https://doi.org/10.3390/app10217808 [Google Scholar]
- Lin ZX (2014). Stereo effect and visual comfort of 3D images. Ph.D. Dissertation, National Chiao Tung University, Hsinchu, Taiwan.
- Liu GY (2016). Exploring the phenomenon of motion sickness caused by virtual reality technology from the aspects of user experience. M.Sc. Thesis, Providence University, Taichung, Taiwan.
- Liu WC (2010). Posture instability precede motion sickness effect about imposed motion and body sway restricted. M.Sc. Thesis, National Normal University, Taipei, Taiwan.
- Saito Y, Kawashima K, and Hirakawa M (2020). Effectiveness of a head movement interface for steering a vehicle in a virtual reality driving simulation. Symmetry, 12(10): 1645. https://doi.org/10.3390/sym12101645 [Google Scholar]
- Stanney K, Lawson BD, Rokers B, Dennison M, Fidopiastis C, Stoffregen T, and Fulvio JM (2020). Identifying causes of and solutions for cybersickness in immersive technology: Reformulation of a research and development agenda. International Journal of Human–Computer Interaction, 36(19): 1783-1803. https://doi.org/10.1080/10447318.2020.1828535 [Google Scholar]
- Stoffregen TA, Faugloire E, Yoshida K, Flanagan MB, and Merhi O (2008). Motion sickness and postural sway in console video games. Human Factors, 50(2): 322-331. https://doi.org/10.1518/001872008X250755 [Google Scholar] PMid:18516842
- Ujike H, Ukai K, and Nihei K (2008). Survey on motion sickness-like symptoms provoked by viewing a video movie during junior high school class. Displays, 29(2): 81-89. https://doi.org/10.1016/j.displa.2007.09.003 [Google Scholar]
- Widdowson C, Becerra I, Merrill C, Wang RF, and LaValle S (2021). Assessing postural instability and cybersickness through linear and angular displacement. Human Factors, 63(2): 296-311. https://doi.org/10.1177/0018720819881254 [Google Scholar] PMid:31651196
- Yildirim C (2019). Cybersickness during VR gaming undermines game enjoyment: A mediation model. Displays, 59: 35-43. https://doi.org/10.1016/j.displa.2019.07.002 [Google Scholar]
