International journal of


EISSN: 2313-3724, Print ISSN:2313-626X

Frequency: 12

line decor
line decor

 Volume 6, Issue 6 (June 2019), Pages: 60-65


 Original Research Paper

 Title: Curing parameter optimization of the adhesive film in honeycomb sandwich structures through mechanical performance

 Author(s): Tayyab Subhani *


 Department of Mechanical Engineering, College of Engineering, University of Hail, Hail, Saudi Arabia

  Full Text - PDF          XML

 * Corresponding Author.

  Corresponding author's ORCID profile:

 Digital Object Identifier:


In this investigation, honeycomb sandwich structures were manufactured for aerospace structural applications. The composite material of carbon fiber and epoxy matrix was utilized as the facesheet of sandwich structures while Nomex® honeycomb acted as the core material. For the bonding of facesheet with core, an epoxy-based adhesive film was used. To optimize the curing parameters of the adhesive film, a set of four curing temperatures, i.e., 100oC, 110oC 120oC and 130oC, and two curing times, i.e., 2h and 3h were applied. The prepared sandwich structures were tested under a three-point bend test to investigate the maximum mechanical properties. It was found that the temperature of 120oC with the curing time of 2h provided the maximum mechanical properties and thus was selected as the optimized curing parameters of adhesive film.

 © 2019 The Authors. Published by IASE.

 This is an open access article under the CC BY-NC-ND license (

 Keywords: Honeycomb sandwich structure, Mechanical, Three-point bend test, Carbon fiber, Epoxy

 Article History: Received 11 January 2019, Received in revised form 4 April 2019, Accepted 7 April 2019


No Acknowledgement.

 Compliance with ethical standards

 Conflict of interest:  The authors declare that they have no conflict of interest.


 Subhani T (2019). Curing parameter optimization of the adhesive film in honeycomb sandwich structures through mechanical performance. International Journal of Advanced and Applied Sciences, 6(6): 60-65

 Permanent Link to this page

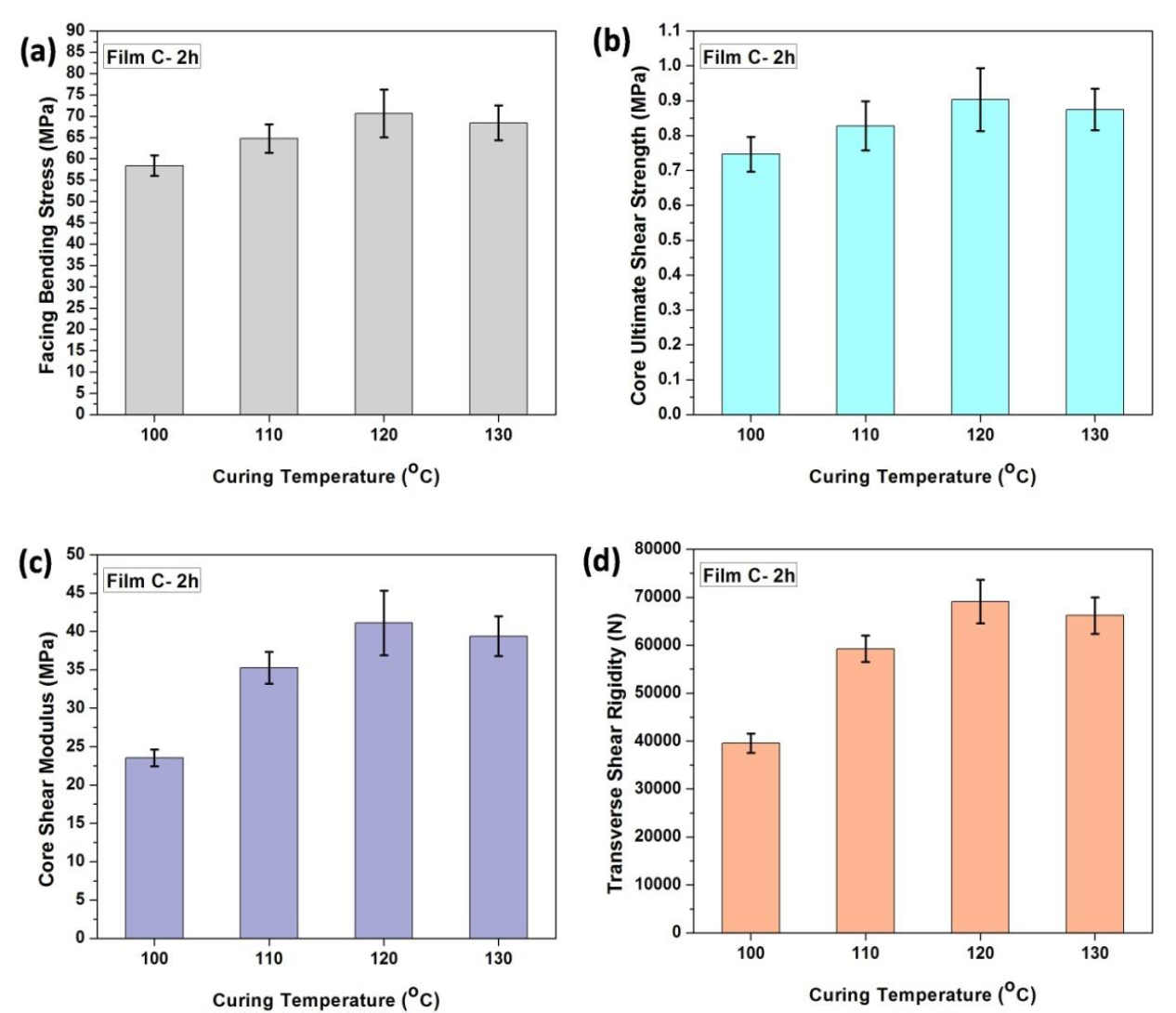

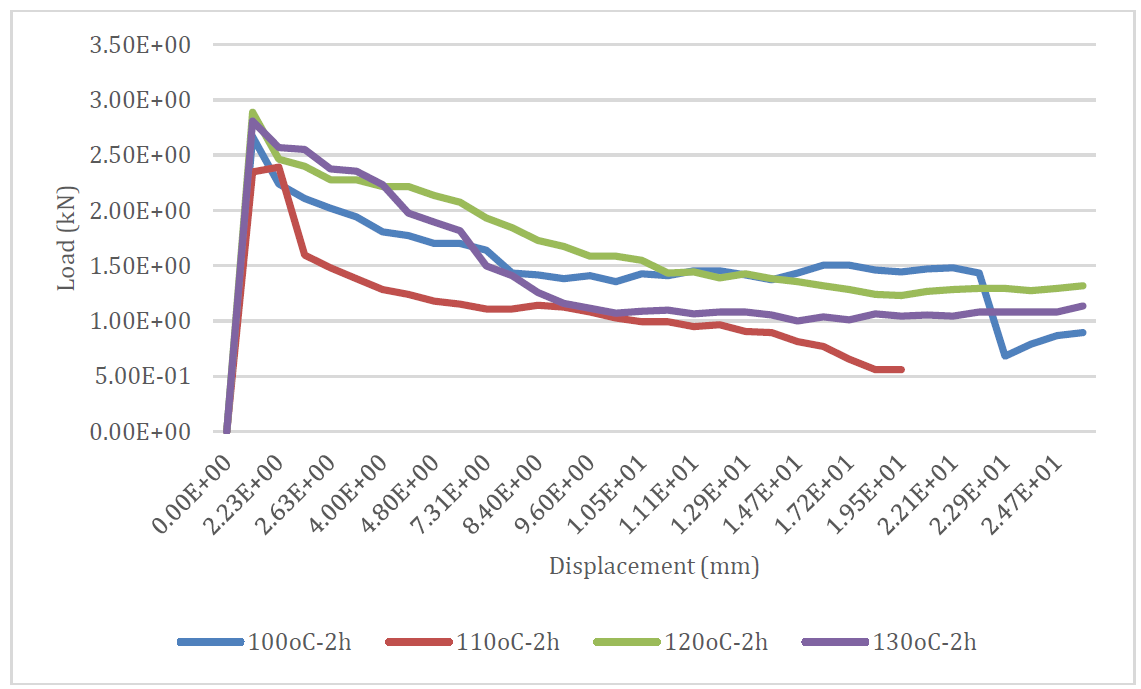

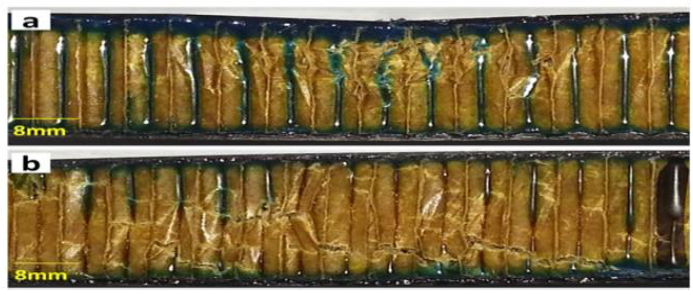

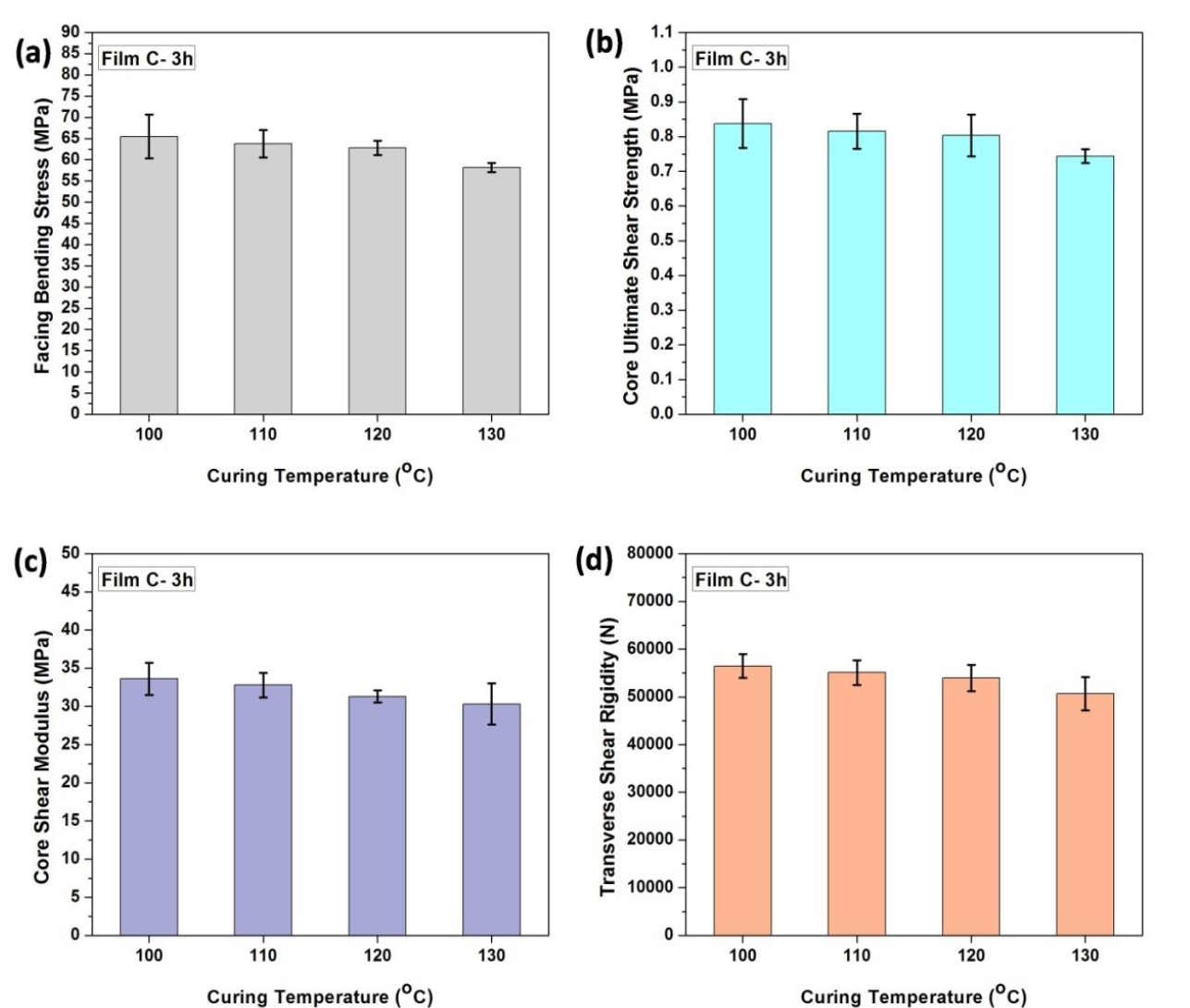

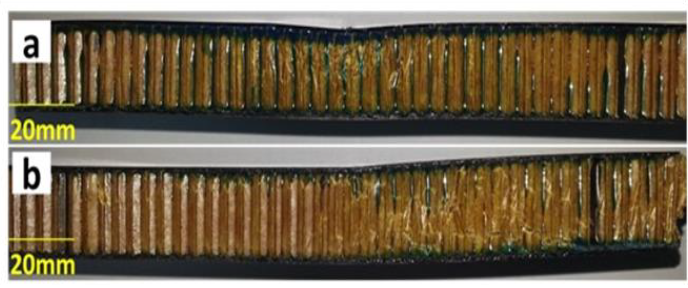

 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6


 No Table


 References (11)

  1. Avery JL and Sankar BV (2000). Compressive failure of sandwich beams with debonded face-sheets. Journal of Composite Materials, 34(14): 1176-1199.   [Google Scholar]
  2. Cantwell WJ and Davies P (1994). A test technique for assessing core-skin adhesion in composite sandwich structures. Journal of Materials Science Letters, 13(3): 203-205.   [Google Scholar]
  3. Cantwell WJ, Scudamore R, Ratcliffe J, and Davies P (1999). Interfacial fracture in sandwich laminates. Composites Science and Technology, 59(14): 2079-2085.   [Google Scholar]
  4. Fan H, Zhou Q, Yang W, and Jingjing Z (2010). An experiment study on the failure mechanisms of woven textile sandwich panels under quasi-static loading. Composites Part B: Engineering, 41(8): 686-692.   [Google Scholar]
  5. Farooq U, Ahmad MS, Rakha SA, Ali N, Khurram AA, and Subhani T (2017). Interfacial mechanical performance of composite honeycomb sandwich panels for aerospace applications. Arabian Journal for Science and Engineering, 42(5): 1775-1782.   [Google Scholar]
  6. Giglio M, Gilioli A, and Manes A (2012). Numerical investigation of a three point bending test on sandwich panels with aluminum skins and Nomex™ honeycomb core. Computational Materials Science, 56: 69-78.   [Google Scholar]
  7. Johnson AF and Sims GD (1986). Mechanical properties and design of sandwich materials. Composites, 17(4): 321-328.   [Google Scholar]
  8. Langdon GS, Von Klemperer CJ, Rowland BK, and Nurick GN (2012). The response of sandwich structures with composite face sheets and polymer foam cores to air-blast loading: Preliminary experiments. Engineering Structures, 36: 104-112.   [Google Scholar]
  9. Okada R and Kortschot MT (2002). The role of the resin fillet in the delamination of honeycomb sandwich structures. Composites Science and Technology, 62(14): 1811-1819.   [Google Scholar]
  10. Rion J, Leterrier Y, and Månson JAE (2008). Prediction of the adhesive fillet size for skin to honeycomb core bonding in ultra-light sandwich structures. Composites Part A: Applied Science and Manufacturing, 39(9): 1547-1555.   [Google Scholar]
  11. Velecela O, Found MS, and Soutis C (2007). Crushing energy absorption of GFRP sandwich panels and corresponding monolithic laminates. Composites Part A: Applied Science and Manufacturing, 38(4): 1149-1158.   [Google Scholar]
