 Volume 6, Issue 2 (February 2019), Pages: 33-38


 Original Research Paper

 Title: Glass breaks detection system using deep auto-encoders with fuzzy rules induction algorithm

 Author(s): Wai Yan Nyein Naing *, Zaw Zaw Htike, Amir Akramin Shafie


 Mechatronic Engineering Department, International Islamic University Malaysia (IIUM), Gombak, Malaysia

  Full Text - PDF          XML

 * Corresponding Author.

  Corresponding author's ORCID profile:

 Digital Object Identifier:


Main uses of glass windows in commercial and residential buildings are prevalent. While a glass-based material has its advantages, it also poses security risks. Therefore, glass break detectors play an important role in security protection for offices and residential buildings. Conventional vibration-based and acoustic-based glass break detectors are designed to detect predetermined temporal and frequency feature thresholds of glass breakage sound signals. This leads to the inability to differentiate glass break from environmental sounds (such as the sound of striking objects, heavy sounds and shouted sounds) that are similar in their amplitude threshold and frequency pattern. Machine learning based acoustic audio classification has been popular in security surveillance applications. Researchers are interested in this research area, and different approaches have been proposed for anomaly event detection (such as gunshots, glass breakage sounds, etc.). This paper proposes a new design of a glass break detection algorithm based on Fuzzy Deep Auto-encoder Neural Network. The algorithm reduces false alarms and improves detection accuracy. Experimental results indicate that proposed fuzzy deep auto-encoder network system attained 95.5% correct detection for the proposed audio dataset.

 © 2019 The Authors. Published by IASE.

 This is an open access article under the CC BY-NC-ND license (

 Keywords: Glass break detection, Deep auto-encoder neural network, Fuzzy rule induction algorithm

 Article History: Received 25 July 2018,Received in revised form 27 November 2018, Accepted 5 December 2018


This work was supported by the Ministry of Higher Education Malaysia under PRGS17-002-0042 and International Islamic University Malaysia under RIGS16-350-0514.

 Compliance with ethical standards

 Conflict of interest:  The authors declare that they have no conflict of interest.


 Naing WYN, Htike ZZ, and Shafie AA (2019). Glass breaks detection system using deep auto-encoders with fuzzy rules induction algorithm. International Journal of Advanced and Applied Sciences, 6(2): 33-38

 Permanent Link to this page

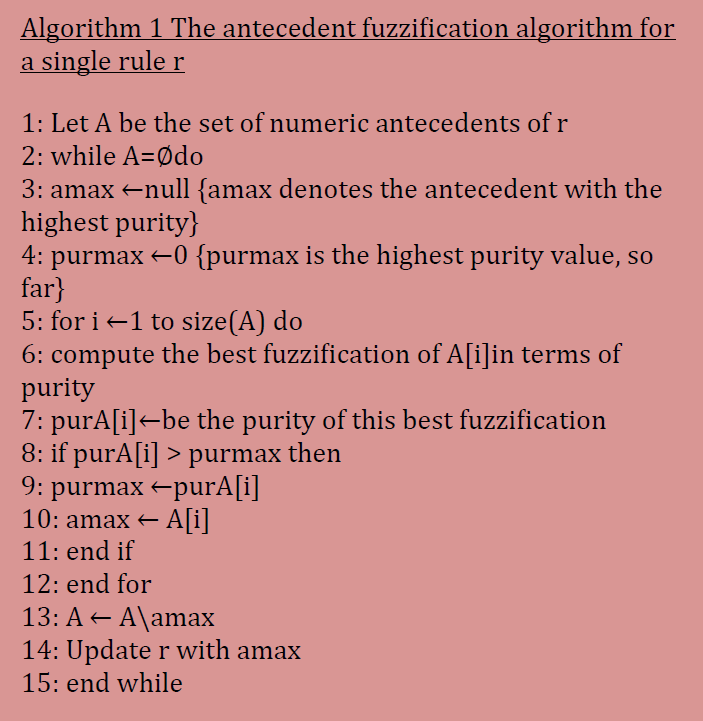

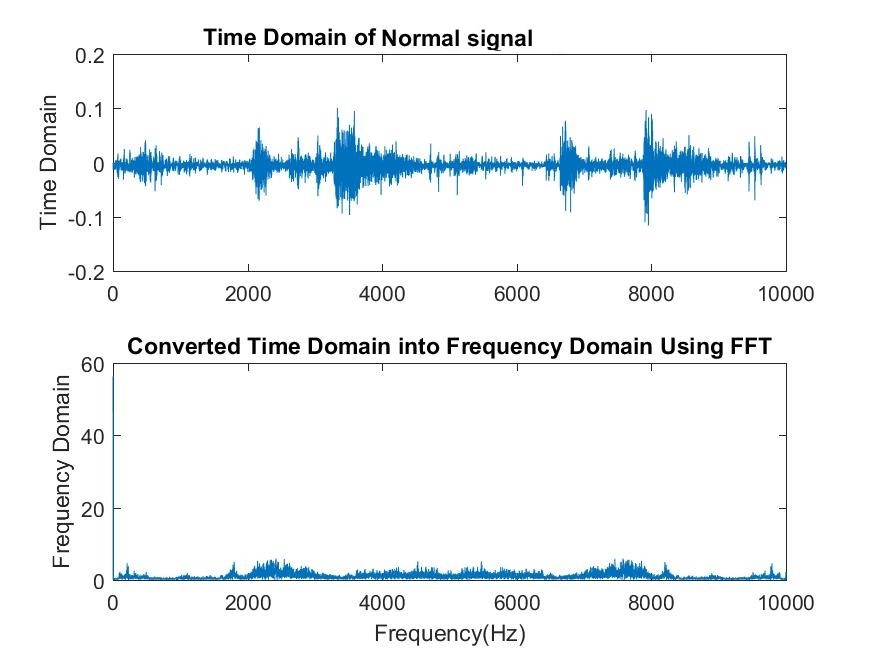

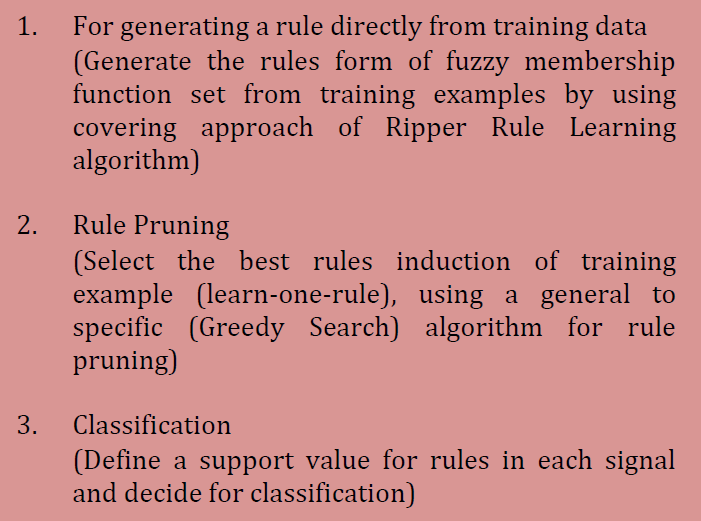

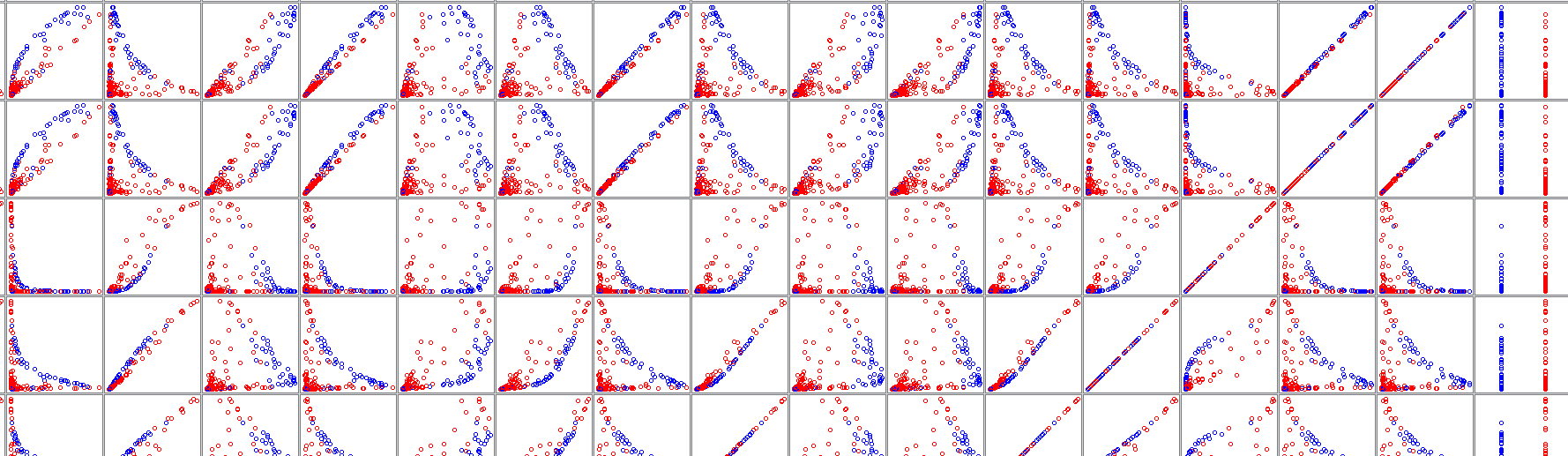

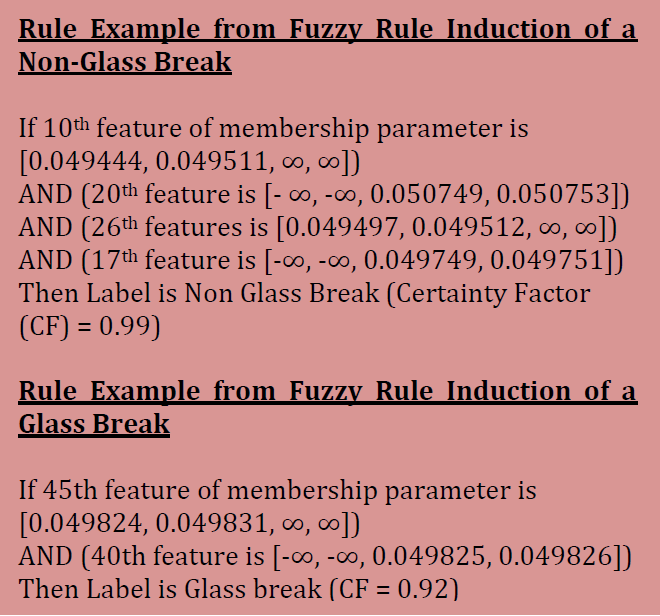

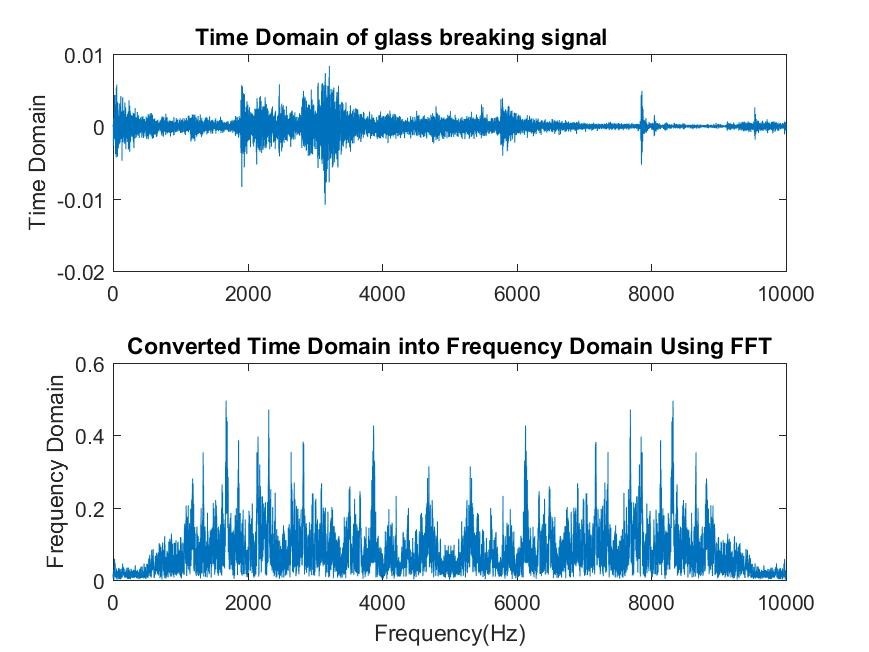

 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7

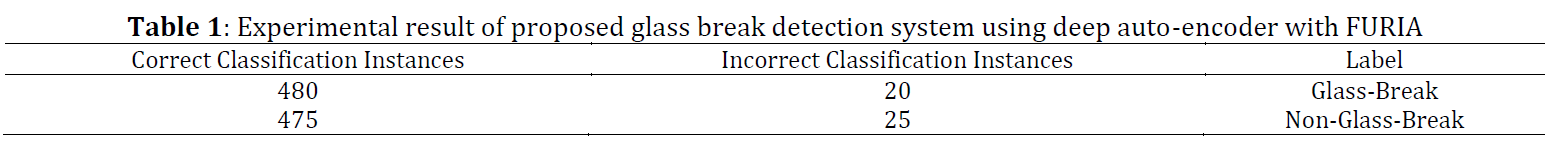

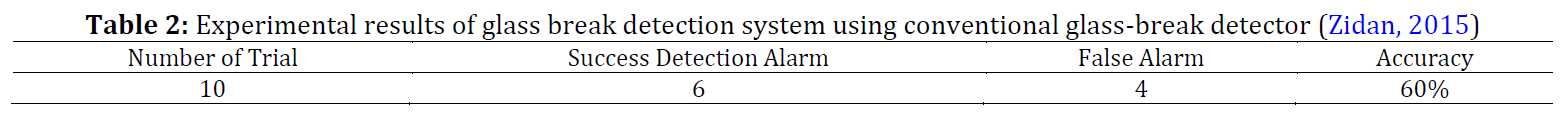

 Table 1 Table 2


 References (16)

  1. Dufaux A, Besacier L, Ansorge M, and Pellandini F (2005). Automatic sound detection and recognition for noisy environment. In the 10th European Signal Processing Conference, IEEE, Tampere, Finland: 1033-1036.   [Google Scholar]
  2. Eskildsen KG (2005). Method and system for detecting a predetermined sound event such as the sound of breaking glass. U.S. Patent No. 7,680,283, Patent and Trademark Office, Washington, D.C., USA.   [Google Scholar]
  3. Hinton GE and Salakhutdinov RR (2006). Reducing the dimensionality of data with neural networks. Science, 313(5786): 504-507.   [Google Scholar] PMid:16873662
  4. Hühn J and Hüllermeier E (2009). FURIA: An algorithm for unordered fuzzy rule induction. Data Mining and Knowledge Discovery, 19(3): 293-319.   [Google Scholar]
  5. Hühn JC and Hüllermeier E (2010). An analysis of the FURIA algorithm for fuzzy rule induction. In: Koronacki J, Raś ZW, Wierzchoń ST, and Kacprzyk J (Eds.), Advances in machine learning: 321-344. Springer, Berlin, Germany.   [Google Scholar]
  6. Lopatka K, Kotus J, and Czyzewski A (2016). Detection, classification and localization of acoustic events in the presence of background noise for acoustic surveillance of hazardous situations. Multimedia Tools and Applications, 75(17): 10407-10439.   [Google Scholar]
  7. Mohlenkamp MJ (1999). A fast transform for spherical harmonics. Journal of Fourier Analysis and Applications, 5(2-3): 159-184.   [Google Scholar]
  8. Richard AS (2011). Highly directional glassbreak detector. U.S. Patent No. 13,105,026, Patent and Trademark Office, Washington D.C., USA.   [Google Scholar]
  9. Sidhu AS (2005). The rise of crime in Malaysia: An academic and statistical analysis. Journal of the Kuala Lumpur Royal Malaysia Police College, 4: 1-28.   [Google Scholar]
  10. Smith RA (2004). Method of eliminating impact/shock related false alarms in an acoustical glassbreak detector. U.S. Patent No. 7,388,487, Patent and Trademark Office, Washington D.C., USA.   [Google Scholar]
  11. Stelzer I (2010). High performance laminated glass. In the Challenging Glass Conference Proceedings, Delft University of Technology, Delft, Netherlands, 2: 465-474.   [Google Scholar]
  12. Tüske Z, Golik P, Schlüter R, and Ney H (2014). Acoustic modeling with deep neural networks using raw time signal for LVCSR. In the 15th Annual Conference of the International Speech Communication Association, Singapore: 890-894.   [Google Scholar]
  13. Van Loan C (1992). Computational frameworks for the fast Fourier transform. Volume 10, Siam, Philadelphia, Pennsylvania, USA.   [Google Scholar]
  14. Venkat K (2010). Glass-breakage detector uses one microcontroller. EDN, 55(17): 39-45.   [Google Scholar]
  15. Wang K, Yang L, and Yang B (2017). Audio event detection and classification using extended R-FCN Approach. Technical Report, Challenge, Detection and Classification of Acoustic Scenes and Events, Munich, Germany.   [Google Scholar]
  16. Zidan WI (2015). Estimation of cluster sensors’ probability of detection for physical protection systems evaluation. Journal of Physical Security, 8(1): 40-54.   [Google Scholar]
