 Volume 6, Issue 12 (December 2019), Pages: 78-81

----------------------------------------------

 Original Research Paper

 Title: Compact design of stair shape patch for short range and lower 5G systems

 Author(s): Haitham Alsaif *

 Affiliation(s):

 Electrical Engineering Department, University of Hail, Ha'il, Saudi Arabia

  Full Text - PDF          XML

 * Corresponding Author.

  Corresponding author's ORCID profile: https://orcid.org/0000-0003-0581-7178

 Digital Object Identifier:

 https://doi.org/10.21833/ijaas.2019.12.009

 Abstract:

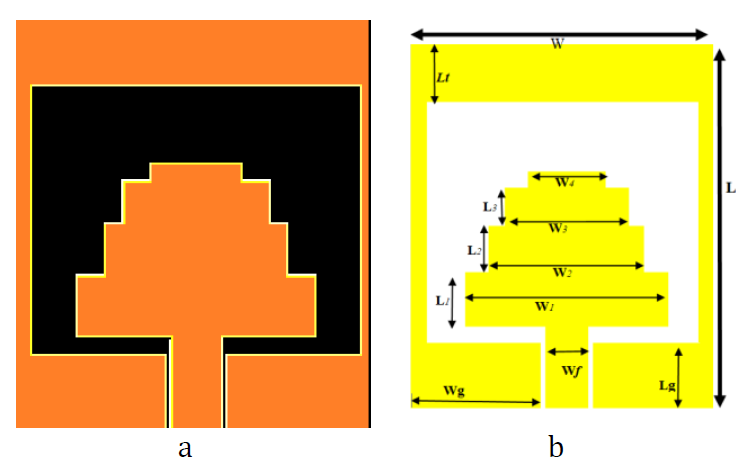

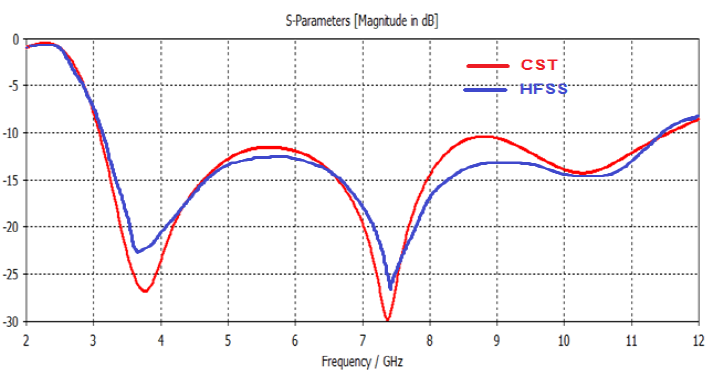

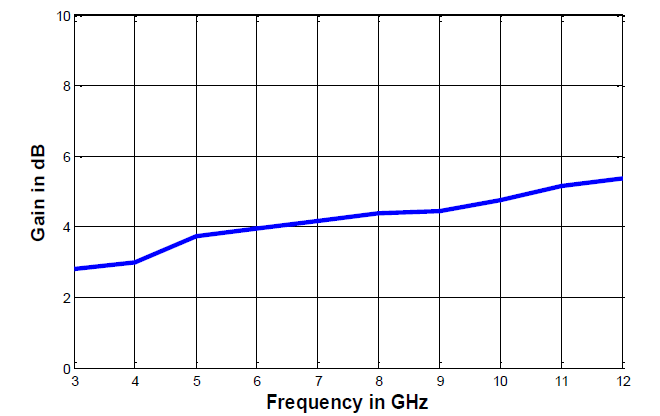

A new stair with four steps shape compact antenna is proposed for lower fifth generation and short ranges wireless communications. The presented design is covering a radio frequency (RF) band starting from 3.07 GHz to 11.4 GHz. This monopole consists of a single layer of stair shape printed on a dielectric material of Rogers Duroid RT5880Lz with relative permittivity of 𝜖r=1.96 and loss tangent δ of 0.0009. Also, the design is characterized by miniaturized structure size 20 * 24 mm2 and maximum power gain of 5.6 dB. The antenna has been designed and optimized using an industrial standard simulation software (CST Microwave studio and HFSS for verifications).

 © 2019 The Authors. Published by IASE.

 This is an open access article under the CC BY-NC-ND license (http://creativecommons.org/licenses/by-nc-nd/4.0/).

 Keywords: Compact antenna, Planar antenna, Lower 5G band, Short range systems

 Article History: Received 18 March 2019, Received in revised form 4 October 2019, Accepted 4 October 2019

 Acknowledgement:

No Acknowledgement.

 Compliance with ethical standards

 Conflict of interest:  The authors declare that they have no conflict of interest.

 Citation:

 Alsaif H (2019). Compact design of stair shape patch for short range and lower 5G systems. International Journal of Advanced and Applied Sciences, 6(12): 78-81

 Permanent Link to this page

 Figures

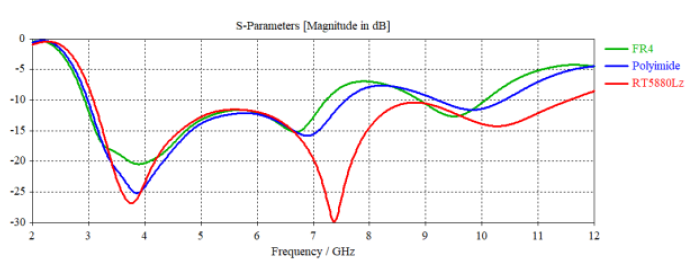

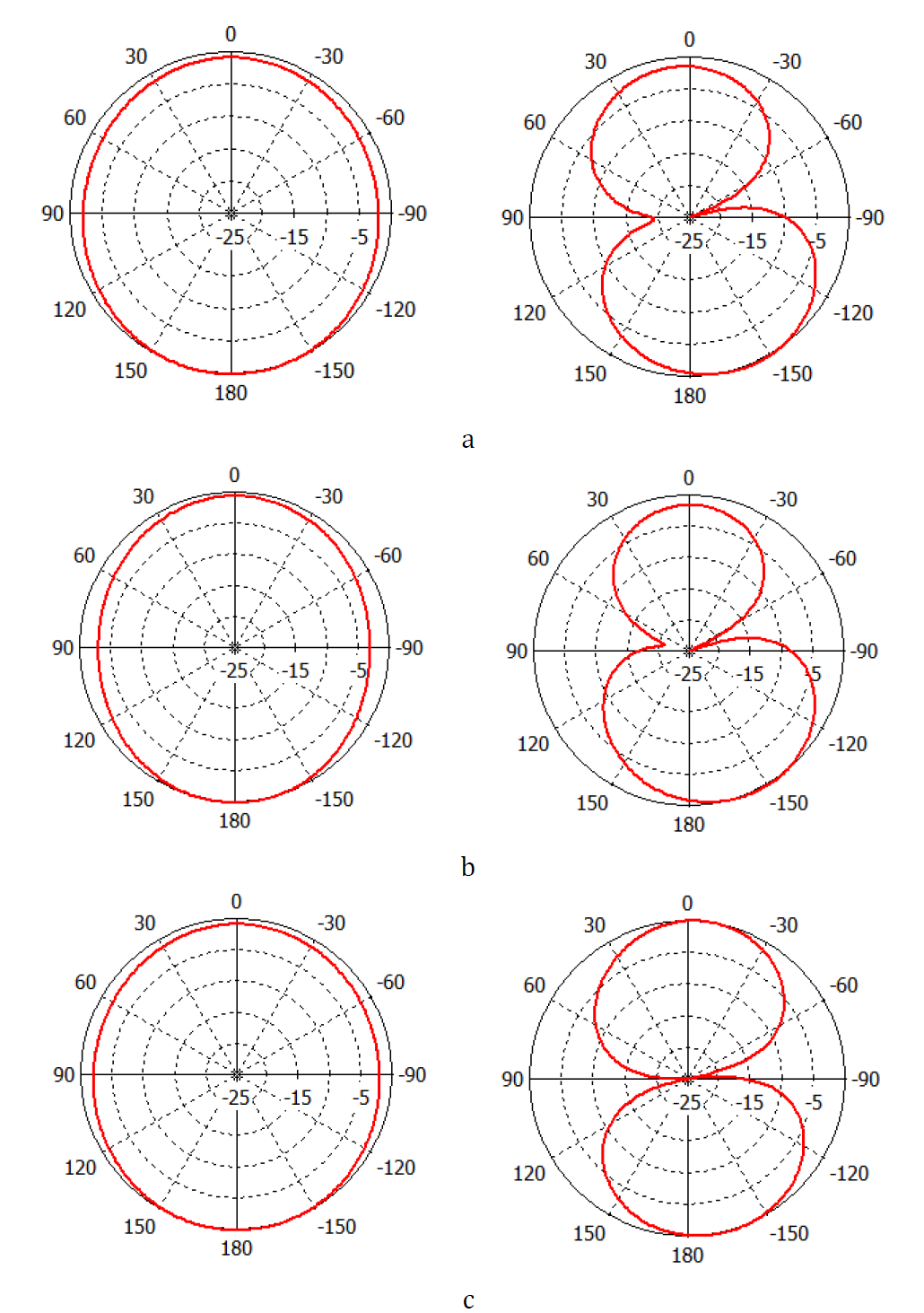

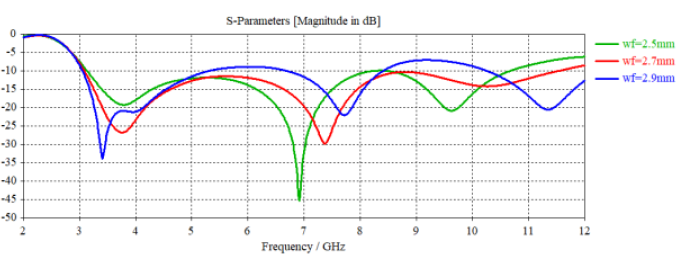

 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6

 Tables

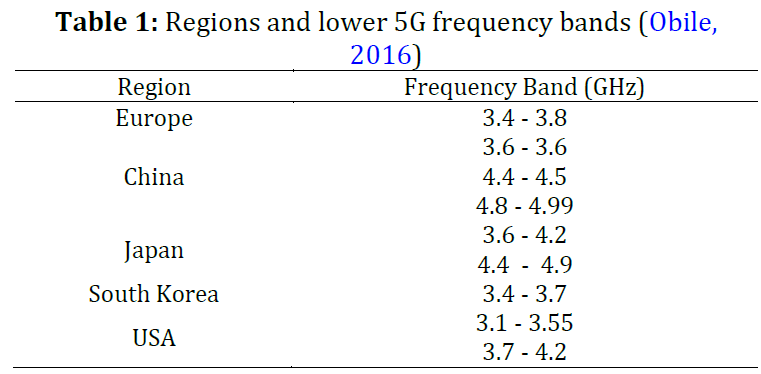

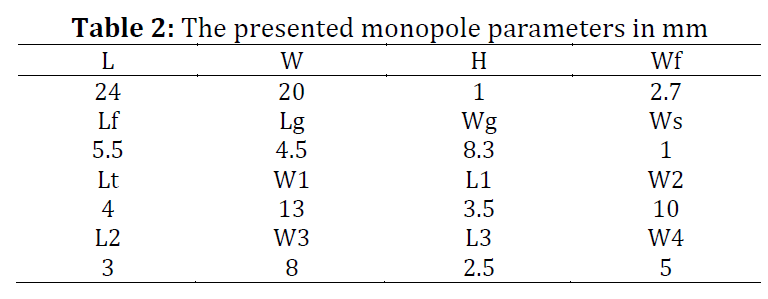

 Table 1 Table 2

----------------------------------------------

 References (11)

  1. Abbosh AM and Bialkowski ME (2008). Design of ultrawideband planar monopole antennas of circular and elliptical shape. IEEE Transactions on Antennas and Propagation, 56(1): 17-23. https://doi.org/10.1109/TAP.2007.912946   [Google Scholar]
  2. Al-Saif H, Usman M, Chughtai MT, and Nasir J (2018). Compact ultra-wide band MIMO antenna system for lower 5G bands. Wireless Communications and Mobile Computing, 2018: Article ID 2396873. https://doi.org/10.1155/2018/2396873   [Google Scholar]
  3. Dateki T, Seki H, and Minowa M (2016). From LTE-advanced to 5g: Mobile access system in progress. Fujitsu Scientific and Technical Journal, 52(2): 97-102.   [Google Scholar]
  4. Ebrahimi E, Litschke O, Baggen R, and Hall PS (2010). Isolation enhancement of planar disc antenna and ground plane in UWB applications. Electronics Letters, 46(23): 1539-1541. https://doi.org/10.1049/el.2010.2775   [Google Scholar]
  5. FCC (2002). First report and order in the matter of revision of part 15 of the Commission's rules regarding ultra-wideband transmission systems. FCC ET-Docket 02-48: Federal Communication Commission, Washington, USA.   [Google Scholar]
  6. Gautam AK, Yadav S, and Kanaujia BK (2013). A CPW-fed compact UWB microstrip antenna. IEEE Antennas and Wireless Propagation Letters, 12: 151-154. https://doi.org/10.1109/LAWP.2013.2244055   [Google Scholar]
  7. Huawei (2018). 5G spectrum–public policy position. Available online at: https://bit.ly/34Fp0ST
  8. Kim JI and Jee Y (2007). Design of ultrawideband coplanar waveguide-fed LI-shape planar monopole antennas. IEEE Antennas and Wireless Propagation Letters, 6: 383-387. https://doi.org/10.1109/LAWP.2007.903495   [Google Scholar]
  9. Obile W (2016). Ericsson mobility report. Available online at: https://bit.ly/2pIflML
  10. Ren YJ and Chang K (2006). Ultra-wideband planar elliptical ring antenna. Electronics Letters, 42(8): 447-449. https://doi.org/10.1049/el:20060210   [Google Scholar]
  11. Xu K, Zhu Z, Li H, Huangfu J, Li C, and Ran L (2013). A printed single-layer UWB monopole antenna with extended ground plane stubs. IEEE Antennas and Wireless Propagation Letters, 12: 237-240. https://doi.org/10.1109/LAWP.2013.2247555   [Google Scholar]
